A True Class 4-6 Electric Cab-Chassis Vocational Truck Solution

  • Electric power platform with market-leading productivity
  • Configurable wheel base, battery capacity and payload
  • Utilizes existing OEM bodies and auxiliary tool functions
  • Common software tools and major components
  • Market-leading durability and Total Cost of Ownership

Zeus Electric Chassis Specifications

Please Note: Vehicle specifications are subject to change without notice and may vary due to modifications and / or upfitting.

Z-19--Badge---White-W-Orange-Outline-Underline

Class 5 | 290 hp | 2,040 lb-ft Torque

Traction Motor PMAC Dual Liquid-Cooled
Battery Type Lithium-Ion NMC
Bus Voltage 400 vdc
Battery Capacity 175 – 210 kWh
Onboard Charger J1772 Level-2 CCS1
DC Fast Charge Up to 179 kW
Exportable Power 15 kw, 120/240 VAC
ePTO Provision – Hydraulic Power Up to 50 kW

Cab to Axle (CA) 60”, 84”, 108”, 120”
Drive Options All Wheel Drive
Axle / Suspension (Front) Severe Service Independent 7,500 FAWR
Axle / Suspension (Rear) Severe Service Independent 16,000 RAWR
Brakes Hydraulic 4 Wheel Disc, 16” Rotor
Wheels & Tires 295 60R 22.5
Regenerative Braking Standard
Wheels 22.5” / Beadlock
Range See Factory
Maximum Speed 73 mph
Continuous Power 290 hp (cont)
Continuous Torque 2,040 lb-ft (cont)

GVWR 16,001 – 19,500 lbs
Curb Weight 10,000 lbs (Starting)
Payload Up to 8,000 lbs
Towing Capacity Up to 40,000 GCWR
Z-22--Badge---White-W-Orange-Outline-Underline

Class 6 | 290 hp | 2,040 lb-ft Torque

Traction Motor PMAC Dual Liquid-Cooled
Battery Type Lithium-Ion NMC
Bus Voltage 400 vdc
Battery Capacity 175 – 210 kWh
Onboard Charger J1772 Level-2 CCS1
DC Fast Charge Up to 179 kW
Exportable Power 15 kw, 120/240 VAC
ePTO Provision – Hydraulic Power Up to 50 kW

Cab to Axle (CA) 60”, 84”, 108”, 120”
Drive Options All Wheel Drive
Axle / Suspension (Front) Severe Service Independent 7,500 FAWR
Axle / Suspension (Rear) Severe Service Independent 16,000 RAWR
Brakes Hydraulic 4 Wheel Disc, 16” Rotor
Wheels & Tires 295 60R 22.5
Regenerative Braking Standard
Wheels 22.5” / Beadlock
Range See Factory
Maximum Speed 73 mph
Continuous Power 290 hp (cont)
Continuous Torque 2,040 lb-ft (cont)
GVWR 19,501 – 22,300 lbs
Curb Weight 11,200 lbs (Starting)
Payload Up to 11,000 lbs
Towing Capacity Up to 40,000 GCWR
Z-26--Badge---White-W-Orange-Outline-Underline

Class 6 | 510 hp | 3,500 lb-ft Torque

Traction Motor PMAC Dual Liquid-Cooled
Battery Type Lithium-Ion NMC
Bus Voltage 400 vdc
Battery Capacity 175 – 210 kWh
Onboard Charger J1772 Level-2 CCS1
DC Fast Charge Up to 179 kW
Exportable Power 15 kw, 120/240 VAC
ePTO Provision – Hydraulic Power Up to 50 kW
Cab to Axle (CA) 60”, 84”, 108”, 120”
Drive Options All Wheel Drive
Axle / Suspension (Front) Severe Service Independent 7,500 FAWR
Axle / Suspension (Rear) Severe Service Independent 16,000 RAWR
Brakes Hydraulic 4 Wheel Disc, 16” Rotor
Wheels & Tires 295 60R 22.5
Regenerative Braking Standard
Wheels 22.5” / Beadlock
Range See Factory
Maximum Speed 73 mph
Continuous Power 510 hp (cont)
Continuous Torque 3,500 lb-ft (cont)
GVWR 22,301 – 26,000 lbs
Curb Weight 12,000 lbs (Starting)
Payload Up to 13,000 lbs
Towing Capacity Up to 50,000 GCWR

Zeus Standard, and Optional Features

The Zeus cab & chassis platform can be configured to meet the most demanding fleet requirements.

Interior Working Space Features

Rail Mounted Center Console with 10" High-Res Display
Zeus Telematics System with Remote Diagnostics
12 vdc and 24 vdc Accessory Power
Cab Comfort - Air Conditioning & Heat
DuraWear Rip Stop Nylon Bucket Seats
Power Windows & Power Locks
Rhino Liner (TM) Interior Coating
Common Software Tools
Military-Grade Floor Matting & Interior Trim
Thermal and Sound Insulation Package

Exterior Features

Ladder Frame Chassis and Military Grade Standard Aluminum Cab
Impact-Resistant Hood & Fenders
Military Grade Aluminum Front Bumper
Dual 2" Front Receptacles (for Tow Eyes, Hooks, etc.,)
Manual Adjusted, Rearview Mirrors (Door Mount)
Grip Strut (R) Stepping Surfaces & Kick Panel
PPG Oxford White Paint
Configurable Wheel Base, Battery Capacity & Payload
4-Way Antennae
Backup Alarm

Optional Features

Extended 2 Door Cab & Crew Cab
On Board Charger / Inverter
Export Power (120V / 240V)
Auxiliary 12V Power (and Ground)
ePTO (5-10kw) Hydraulic, Frame Mount
ePTO (10+kw) Hydraulic, Frame Mount
Auxiliary HVAC (in Addition to Cabin HVAC)
Front Tow Rings
Front Winch Package
Custom Exterior Lighting Options
Seat Armrests
Full Body, Tool & Accessory Integration
Hydraulic & Electric Power Integration
Heat & Remote (Upper & Lower Convex), Rearview Mirrors (Door Mount)
Heat & Manual (Upper & Lower Convex), Rearview Mirrors (Door Mount)
Tinted Windows
4 Camera Input System
360 Degree Camera System
Human - Machine Interface (Keypads, Joysticks, etc.)
Auxiliary Radio Remote Controller
Trailer Brake Controller Switch
115 VAC, 15 Amp Outlets
6 Up-Fitter Switch Package
12 Up-Fitter Switch Package
12v Receptacle Power Battery Direct
12v Receptacle Power Ignition On
Dual 5v USB Power Battery Direct
Dual 5v USB Power Ignition On
Communications Package
MDT Mount
Console Lock Box
Console Cup / Mug Holders

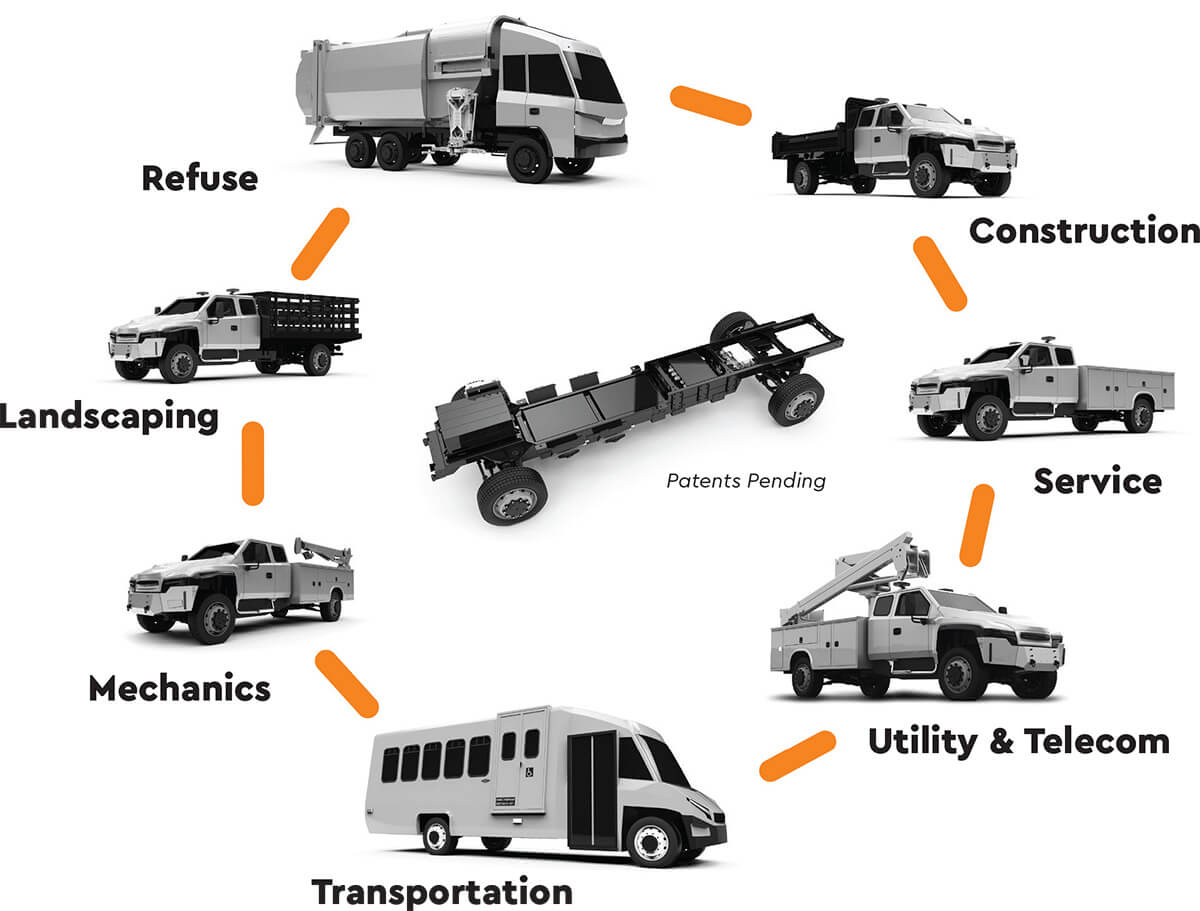

Common Applications of the Zeus Electric Work Truck Chassis

Fleet Electrification Applications

The Zeus Power Platform™ business model enables unmatched speed to market while utilizing existing OEM body solutions and channels to market.

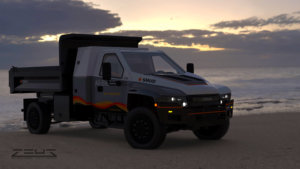

The Zeus Chassis is perfectly suited for vocational work truck applications including: electric bucket trucks, electric boom trucks, electric mechanics trucks, electric dump trucks, electric fire trucks, electric delivery trucks, electric refrigeration trucks, electric crane trucks, electric dry freight trucks, electric RVs, electric box trucks, electric shuttle buses, electric stake trucks, electric flatbed trucks, and electric service trucks to name just a few.

Your truck, your tool, your business

No Compromises

Positioning our OEM Body Partners for Success

Zeus Electric Work Truck Cab Options

The Zeus Cab-Chassis is Configurable from 10k to 55k GVWR Applications

UP_FIT_experiance_good

OEM & Upfitter Approved

Full integration with existing work truck bodies and tools. Work with your upfitters and body manufacturers.

reduce_icon_2

Reduced Cost of Ownership

Save money on fuel, downtime and
maintenance all while increasing
productivity and reducing emissions.
